Whats Included: Complete Set Of Pistons, Locks, & Pins
Application: Not Recommended for use in Nitrous or Turbo Applications

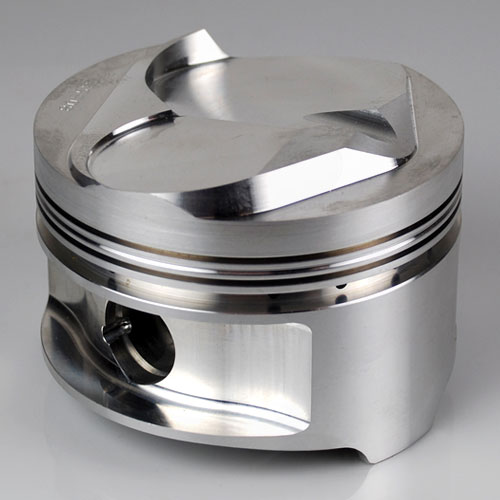

[Please Note]: Image is a representation of this item. Actual item may vary.

Piston Top Type: 4V Dome Top
Bore: 4.030
Stroke: 3.500
Rod Length: 5.778
Compression Height: 1.668
Compression Ratio (64): 12.95
Compression Ratio (68): 12.22
Compression Ratio (76): 10.99
Dome Volume: 14.00
Dome Height: .450
Gram Weight: 571
Rings: 1/16 1/16 3/16
Ring Set: TOT-CR3690
Rings Included: No
Pin Type: 5115 Straight Wall
Pin Diameter: .912
Pin Wall: .150
Block Height: 9.213
NOTE: Piston Rings Sold Separately
